U1 Collar

Description

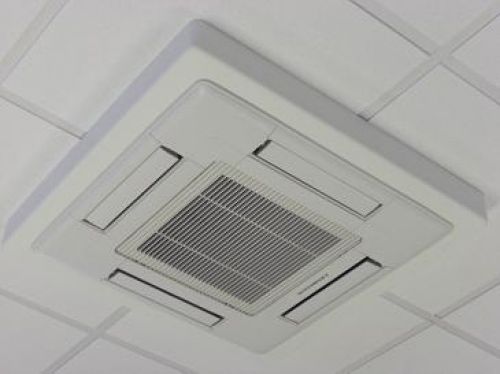

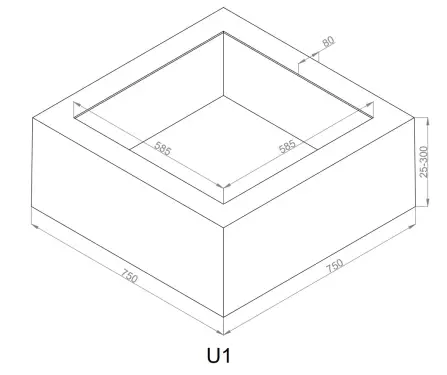

The U1 is a 750mm x 750mm collar, universal to all compact cassettes (650mm to 750mm facia grilles) on all split and VRV/VRF systems. The aperture is 585 mm x 585mm. This collar is slightly larger than the Mini Universal so allows for more space around the cassette to accommodate control panels etc.

All our products are manufactured using class 2 fire retardant resins for extra peace of mind.

Standard colour RAL 9010 but please specify an alternative in the RAL box if required.

Available in standard depths: 50mm/100mm/150mm /200mm/250mm/300mm.

Other depths between 25mm-300mm eg 165mm are available and can be ordered by selecting within the range shown in the 'Depth' drop down menu and then specifying your required depth in the box indicated at checkout.

To specify the exact depth, click 'Proceed to Checkout' you will arrive at the 'Details' page. Write the exact depth you require in the 'Shipping Notes' free form text box before 'Proceed to Shipping'.

Please be aware that variations to standard colours and/or depths are more expensive and need to be manufactured and/or cut to order resulting in a longer delivery time by +3-5 days.
